50kw 400rpm pancake corless axial flux generator
|
1 views
1-1000 Piece
$7,500MOQ:
Not specified
Payment Term:
T/T
Trade Term:
To be discussed
Port Of Loading:
Not specified
Key Takeaways
Freshdi AI is analyzing this product...
50kw Coreless Generator
400rpm Axial Flux Generator
High Efficiency Pancake Generator
Permanent Magnet Coreless Generator
Wholesale 400vac Generator
Product Specifications
Resistance Line Line:
- Ω
Shaft Diameter:
100 Mm
Insulation Resistance:
100 Mohm Min (500v Dc)
Generator Length:
240 Mm
Generator Weight:
300 Kg
Rated Speed:
400 Rpm
Rated Voltage:
400vac
Rated Power:
50 Kw
Rated Current:
7.6 A
Generator Diameter:
900 Mm
Start Torque:
<0.5 N/m
Leakage Level:
<5 Ma
Efficiency:
>85%
Housing Material:
Aluminum (alloy)
Stator:
Coreless
Structure:
Outer Rotor
Rotor:
Permanent Magnet Type (outer Rotor)

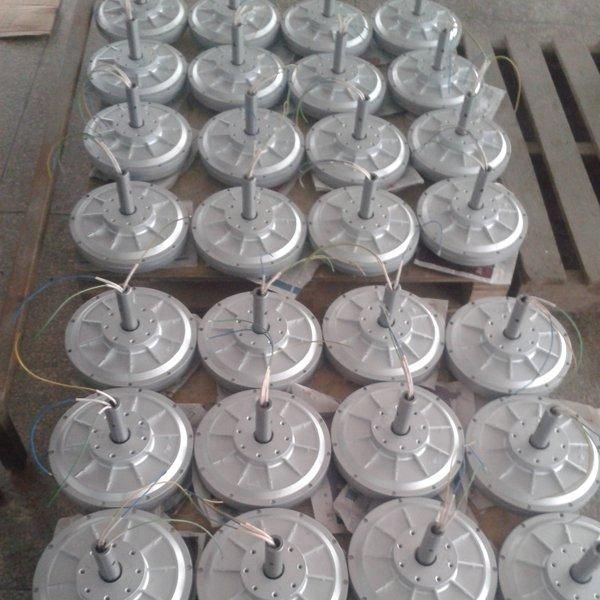

Packaging:
Ploywood case
Shaft Material:
Steel
Phase:
Three Phase
Winding Type:
Y
Design Style:
permanent magnet
2.0
China
1 yrs
Exporter/Wholesaler, Service Provider, Trade
China
Activity signals
Inquiry Open Rate
100%
Total inquiries received
1
Inquiries Read
1
Export Markets
Based on the information provided by the supplier.
Albania
Germany
United States
Eastern Europe
33%
North America
33%
Western Europe
33%
Verification information
Verify account email
By Freshdi.com
Verify business documents
Verify work email
Verify phone number
Product descriptions from the supplier
MODEL:PMG900-50KW 2. CHARACTER
Our disc coreless PMG have advantage in low Rated speed, Low starting wind speed, Small volume, Energy Small, Light weight, Compact structure,High efficiency etc.
① Coreless, anhysteresis, slotless, have low starting torque.
② No iron loss, have high efficiency
③ Adopt unique coreless precision winding technology design precision coil
④ Adopt the rare earth permanent magnet, which is multipole, mean gap, high power density and high output power.
⑤ Low speed direct driving, no torque fluctuations
⑥ Compact structure, high ratio of power to volume
⑦ No iron loss, low calorific value,small temperature rise
⑧ Simple structure, easy to install
⑨ The brushless structure, free maintenance
3. RANGE OF APPLICATION
vertical axis wind turbine; gasoline generators; hydroelectric generator
NO.
PARAMETER
UNITS
DATA
1
Rated power
KW
50
2
Rated speed
RPM
400
3
Rated voltage
V
400VAC
4
Rated Current
A
7.6
6
Efficiency
>85%
7
Resistance (Line-Line)
Ω
-
8
Winding type
Y
9
Insulation Resistance
100Mohm Min(500V DC)
10
Leakage level
<5 ma
11
Start torque
N/M
<0.5
12
Phase
Three phase
13
Structure
outer rotor
14
Stator
coreless
15
Rotor
Permanent magnet type (outer rotor)
16
Gen. Diameter
mm
900
17
Gen. Length
mm
240
18
Gen. Weight
kg
300
19
Shaft. Diameter
mm
100
20
Housing Material
Aluminum ( Alloy )
21
Shaft Material
Steel
5. PERFORMANCE PARAMETE
