GS5 2D Lidar Sensor ROS Robot Raspberry Pi Laser Scanner Slam
1 Unit
$49.9MOQ:
1 Unit
Payment Term:
Other, T/T
Trade Term:
EXW
Port Of Loading:
Shenzhen, China, Cn (SZX/SZP)
Key Takeaways
Freshdi AI is analyzing this product...
GS5 Lidar Sensor for Robotics
2D Lidar Sensor with 6mm Detection
ROS Compatible Lidar Scanner
Lidar Sensor for Raspberry Pi Robots
Robotic Slam Sensor 80 Degree FOV
Product Specifications
Angular Resolution:
0.54 Degrees
Service Life:
10000 Hours
Minimum Detectable Object Diameter:
6mm
Detection Range:
70mm To 1000mm
Detection Angle:
80 Degrees
Ranging Accuracy:
High Accuracy, Stable Performance
Application Area:
Light Detection and Ranging
Application:
Robot Obstacle Avoidance, Smart Equipment Obstacle Avoidance, Home Service Robot And Vacuum Robot Navigation And Obstacle Avoidance
Blind Zone:
Small Detection Range Blind Area
Field Of View:
≥ 80 Degrees
2.1
China
Exporter/Wholesaler
Shenzhen, Guangdong, China.
Activity signals
Total inquiries received
1
Year Established
2015
Export Markets
Based on the information provided by the supplier.
Japan
South Korea
Turkey
United Arab Emirates
United Kingdom
Western Europe
38%
East Asia
25%
Middle East
25%
North America
12%
Verification information
Verify account email
By Freshdi.com
Verify business documents
Verify work email
Verify phone number
Product descriptions from the supplier
1 PRODUCT OVERVIEW

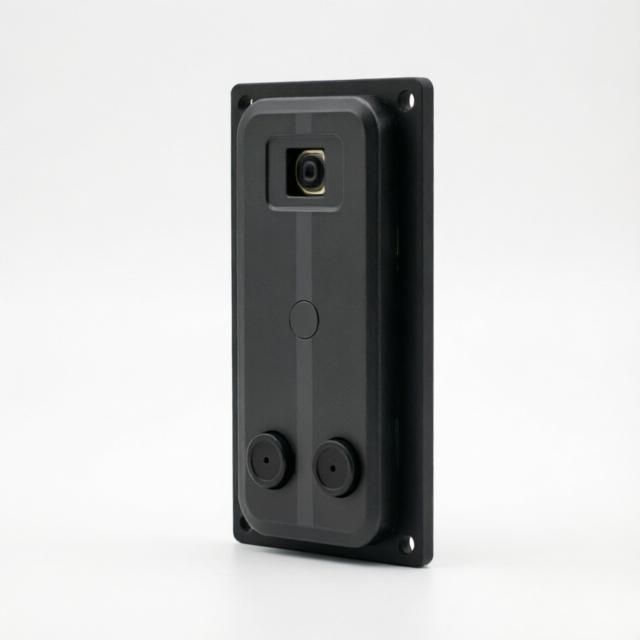

YDLIDAR GS5 is a Linear array solid LiDAR (hereinafter referred to as GS5)
developed by EAI team. Based on the principle of Triangulation, it is equipped with related
optics, electricity, and algorithm design, to achieve 80 degrees high-precision laser distance
measurement, and output point cloud data of the scanning environment. It can be used for
robot obstacle avoidance, path planning, etc.
1.1 Product Features
High accuracy, stable performance
High resolution of ranging angle, up to 0.54 degrees
Good obstacle avoidance effect, the smallest object with a diameter of 6mm can be
detected
Wide detection range, no blind zone in combination, FOV ≥ 80 degrees
Small detection range blind area, detectable distance is 70mm~1000mm
10000h Service life
1.2 Applications
Robot obstacle avoidance
Obstacle avoidance of smart equipment
Navigation and obstacle avoidance of home service robots/vacuum clean robots
