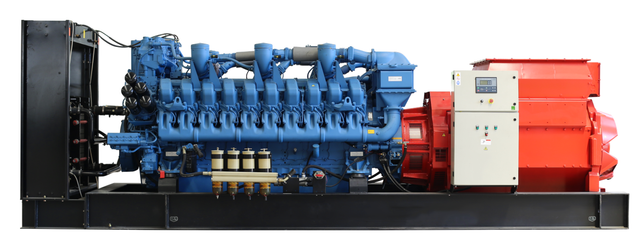

MTU 2500kVA Diesel Generator Set with Stamford Alternator
|
4 views
|
9 Inquiries
1-2 Set
$96,000MOQ:
Not specified
Payment Term:
T/T
Trade Term:
To be discussed
Port Of Loading:
Not specified
Key Takeaways
Freshdi AI is analyzing this product...
2500KVA Diesel Generator Set
Stamford Alternator Genset
Efficient 2500KVA Prime Power Genset
MTU 2500kVA Open Silent Genset
Industrial Prime Power Diesel Generator
Product Specifications
Power Factor:
0.8
Number Of Bearings:
1
Rated Speed:
1500 Rpm
Compression Ratio:
16.4:1
Bore And Stroke:
170×210 Mm
Fuel Consumption At 100% Load:
192 G/kwh, 482 L/h
Weight:
19200 Kg
Fuel Consumption At 75% Load:
195 G/kwh, 369 L/h
Cylinder Arrangement:
20 In V
Fuel Consumption At 50% Load:
211 G/kwh, 271 L/h
Max Standby Power At Rated Speed:
2420kw (without Fan)
Prime Power:
2500 Kva
Standby Power:
2750 Kva
Number Of Phases:
3
Connecting Type:
3 Phase And 4 Wires, Y Type Connecting
Voltage:
380v/400v/415/440v
Frequency:
50hz
Overall Dimensions:
7700×2400×2750 Mm
Displacement:
95.4l
Governor Type:
Adec
Exciter Type:
Brushless Exciting
Place Of Origin:
China
Fuel System:
Electronic Fuel Injection System
Insulation Class And Temperature Rise:
H/h
Protection Class:
Ip23
Engine Manufacturer And Model:
Mtu/20v4000g23f
Type:
Open/Silent
Alternator Model:
Stamford S7l1d-j4
Air Intake System:
Turbocharged, Water/air Inter Cooling
Genset Model:
Xp-m2750
Altitude Rating:
≤1000m
Thf:
＜2%
Telephone Influence Factor:
＜50
1.3
1 yrs
Exporter/Wholesaler
Activity signals
Year Established
2009
Number of Employees
11-50 employees
Export Markets
Based on the information provided by the supplier.
Kenya
East Africa
100%
Verification information
Verify account email
By Freshdi.com
Verify business documents
Verify work email
Verify phone number
Product descriptions from the supplier
Genset Model: XP-M2750
Prime Power: 2500 kVA
Standby Power: 2750 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 7700×2400×2750 mm
Weight: 19200 kg
Engine Specification
Manufacturer / Model MTU/20V4000G23F
Air intake system Turbocharged, water/air inter cooling
Fuel system Electronic Fuel Injection System
Cylinder arrangement 20 in V
Displacement 95.4L
Bore and stroke 170×210 mm
Compression ratio 16.4:1
Rated speed 1500 rpm
Max. Standby power at rated speed 2420kW（without fan）
Governor type ADEC
Fuel consumption @ 100% (Prime Power) Load 192 g/kWh 482 L/h
Fuel consumption @ 75% (Prime Power) Load 195 g/kWh 369 L/h
Fuel consumption @ 50% (Prime Power) Load 211 g/kWh 271 L/h
Alternator Specification (Stamford S7L1D-J4)
Number of Phase 3
Connecting Type 3 Phase and 4 Wires, Y type connecting
Number of Bearing 1
Power Factor 0.8
Protection Class IP23
Altitude ≤1000m
Exciter Type Brushless exciting
Insulation Class/Temperature Rise H/H
Telephone Influence Factor (TIF) ＜50
THF ＜2%
